Kepler16b¶
This is a description of a fanciful space mission called Kepler16b, which is an exoplanet orbiting a binary star system approximately 245 light-years from Earth.
Missions¶
The Kepler16b project delivers two missions: a Lander Mission and an Orbiter Mission, each of which pursues a number of objectives. For all the details, check the full documentation.
Objectives¶

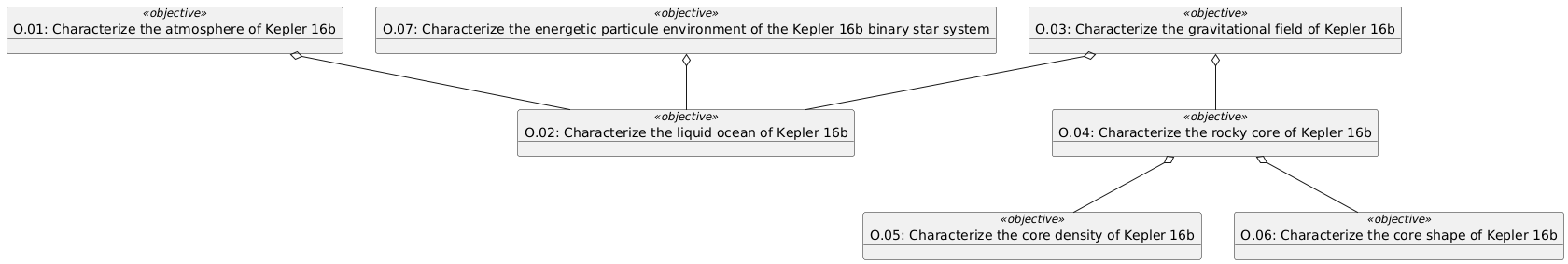

The Kepler16b missions' objectives aggregate other lower level objectives as depicted by the following diagram:
Components¶

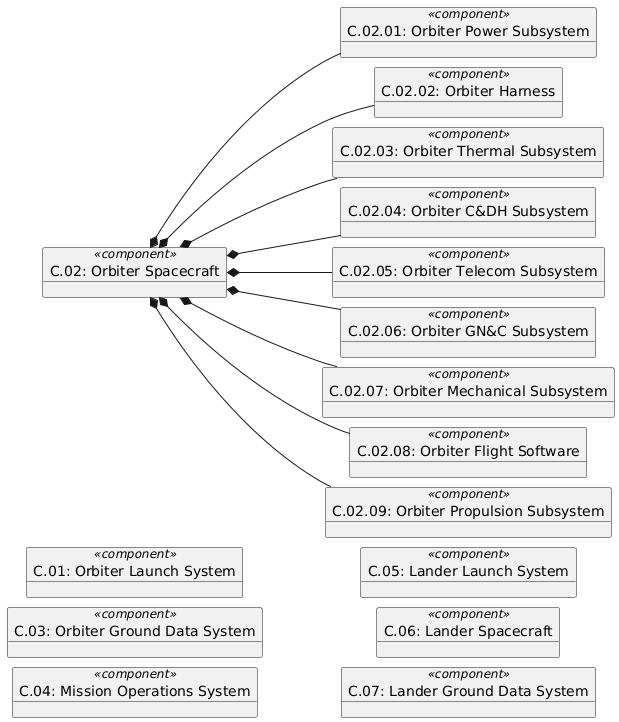

The Kelper16 missions' components are organized in a physical decomposition hierarchy as shown below.
Mass Rollup¶
The Kelper16 missions' components are characterized by their masses. Those masses are rolled up the physical decomposition hierarchy as shown below.
| Id | Name | Mass |
|---|---|---|
| C.01 | Orbiter Launch System | 2000.00 |
| C.02 | Orbiter Spacecraft | 1957.00 |
| C.02.01 | Orbiter Power Subsystem | 297.00 |
| C.02.02 | Orbiter Harness | 138.00 |
| C.02.03 | Orbiter Thermal Subsystem | 307.00 |
| C.02.04 | Orbiter C&DH Subsystem | 147.00 |
| C.02.05 | Orbiter Telecom Subsystem | 316.00 |
| C.02.06 | Orbiter GN&C Subsystem | 156.00 |
| C.02.07 | Orbiter Mechanical Subsystem | 325.00 |
| C.02.08 | Orbiter Flight Software | 165.00 |
| C.02.09 | Orbiter Propulsion Subsystem | 106.00 |
| C.03 | Orbiter Ground Data System | 0 |
| C.04 | Mission Operations System | 0 |
| C.05 | Lander Launch System | 3500.00 |
| C.06 | Lander Spacecraft | 1200.00 |
| C.07 | Lander Ground Data System | 0 |
