Introduction
Welcome to another analytical session exploring the KerML and SysML v2 metamodels using the openCAESAR tools. This analysis is part of an ongoing project dedicated to implementing these metamodels as ontologies using the Ontological Modeling Language (OML). As a quick reminder, our project initially uncovered an instance of an unsatisfiable metaclass within the KerML metamodel. In our latest examination, we’ve identified a couple of cases of unsatisfiable metaclasses within the SysML v2 metamodel.
Before delving further into these findings, let’s clarify what an unsatisfiable class signifies in logical terms. Essentially, an unsatisfiable class is one burdened with a set of constraints that cannot coexist harmoniously. Consequently, this predicament renders the class devoid of any instances, resulting in an empty extent. A prevalent factor contributing to classes becoming unsatisfiable is the presence of contradictory constraints.
Case 1: Metaclass CaseUsage

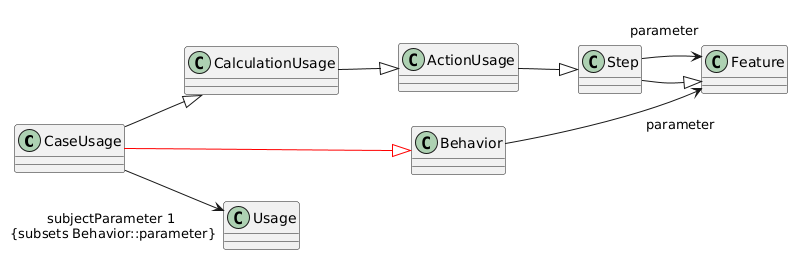

In this case, we can observe a portion of the inheritance hierarchy for the metaclass CaseUsage, illustrated by the solid black inheritance arrows that trace all the way to metaclass Feature. Additionally, metaclass CaseUsage has property CaseUsage::subjectParameter, which is of type Usage and subsets property Behavior::parameter. However, this subsetting introduces an unintended constraint: it necessitates that every instance of CaseUsage must also be typed by Behavior (indicated by the red inheritance arrow). Regrettably, since these two metaclasses lack a shared subclass, they are further declared as disjoint due to OML’s bundle closure algorithm. Consequently, this leads to a contradiction for every instance of metaclass CaseUsage, rendering the class unsatisfiable. This bug is likely an oversight and fortunately has a simple fix, which is to change the subsetted property to Step::parameter since metaclass Step is already a supertypes of CaseUsage.
Case 2: Metaclass RequirementUsage

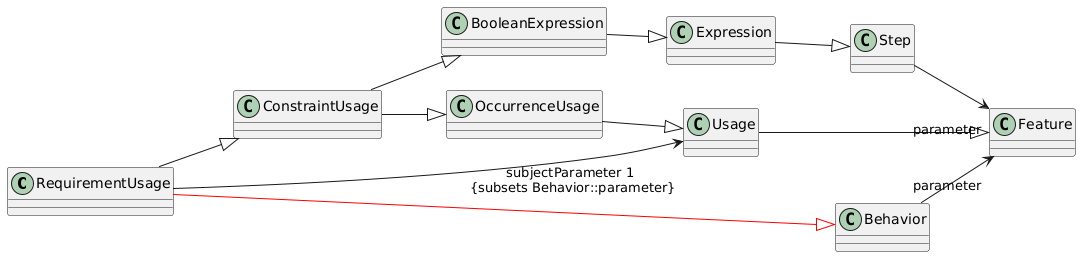

The situation with metaclass RequirementUsage closely parallels that of metaclass CaseUsage above. The issue is that the property RequirementUsage::subjectParameter subsets Behavior::parameter without RequirementUsage subclassing Behavior. The fix is also to switch the subsetting from Behavior::parameter to Step::parameter since Step is a transitive supertype of metaclass RequirementUsage. Again, another simple oversight that can be hard to detect but easy to fix.
Conclusion
Using a Description Logic (DL) reasoner can lead to enlightening discoveries in ontologies. As we author and maintain complex vocabularies like SysML v2, having such an analytical tool becomes an asset. This is due to its ability to discover inconsistencies without explicitly writing audit rules. Stay tuned for further insights and updates as we work towards a consistent vocabulary for SysML v2.
